Hello,

I visualize data from a finite element analysis with VisAD Tue Dec 23
13:47:46 CST 2008.

When I try to map the x-, y- and z-components of tensions to Display.Flow1X
... Display.Flow1Z,
those arrows are not painted correctly where all components equal to 0.0f .

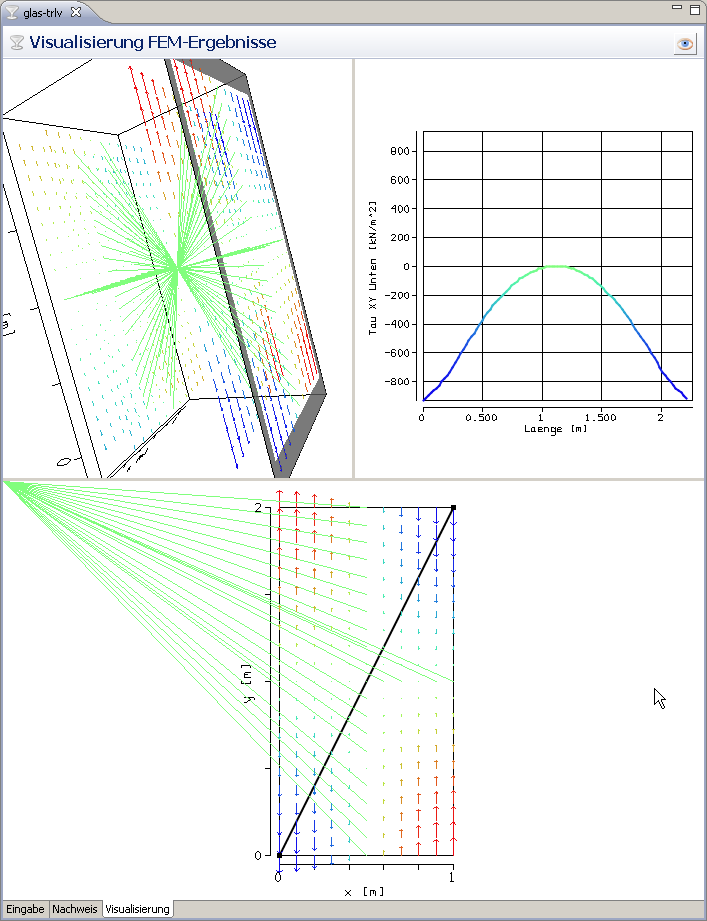

This applies to 2D and 3D displays. Please see the attached screenshot.

What am I doing wrong ?
--
Dipl.-Ing. Sebastian Fuchs
Walter-Arnold-Straße 8
01219 Dresden

fon: +49 (351) 2728098
mobile: +49 (176) 96338376
icq: 114494140

Attachment: tension_components.png
Description: PNG image
